Aluminum plastic blister packaging machine

Using the latest high-power transmission mechanism, the main drive shaft is driven by the row of chains, eliminating the error and noise of other gear transmission.

Electrical appliances adopt imported control system, then according to customer's requirement, it can be equipped with lack of material and missing grain detection and rejection device.

Product usage

Capsules, vegetarian tablets, sugar-coated, gelatin pills, injections, shaped, etc., as well as medical devices, light food, electronic components blister sealing packaging.

Product features

Using the latest high-power transmission mechanism, the main drive shaft is driven by the row of chains, eliminating the error and noise of other gear transmission.

Electrical appliances adopt imported control system, then according to customer's requirement, it can be equipped with lack of material and missing grain detection and rejection device.

The whole machine adopts segment combination: PVC forming, charging and heat sealing is one segment, and tropical aluminum cold forming, heat sealing and punching is one segment, which can be packaged separately.

Adopting photoelectric control system, PVC, PTP, duralumin packaging automatic feeding, waste edge automatic punching and cutting device to ensure the stability of ultra-long distance multi-station synchronization.

Can be equipped with photoelectric detection and correction device, with imported stepping motor traction, graphic printing and packaging, optimize the grade of packages.

Product parameters

Model
Punching times10-40 times/minute
Production capacity2400 plates/hour
Maximum molding area and depth80*110*26mm
Standard stroke range20-70mm
Standard Block80*57mm
Air pressure0.6-0.8 MPa
Total power supply380V/220V 50Hz, 3.2Kw
Main electrode power0.75Kw
PVC hard sheet0.15-0.5*80mm
PTP Aluminum Foil0.02-0.035*80mm
Dialysis paper50-100g*80mm
Mold coolingTap water or circulating water
Dimension1600*600*1100mm
Weight450kg
Noise Indicator<75dBA

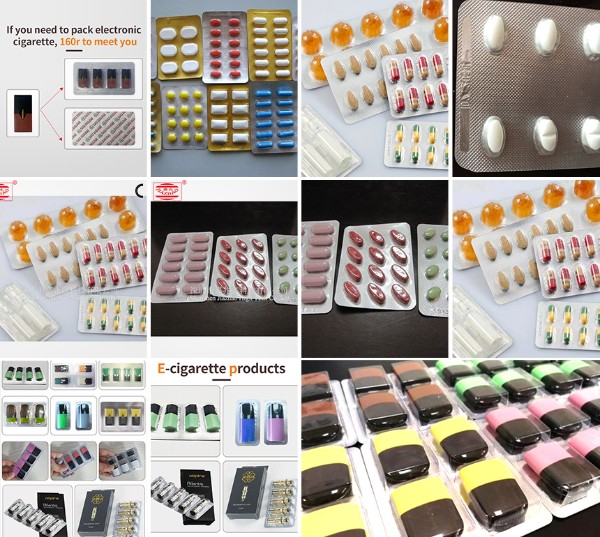

Sample effect display

Aluminum plastic blister packaging machine
