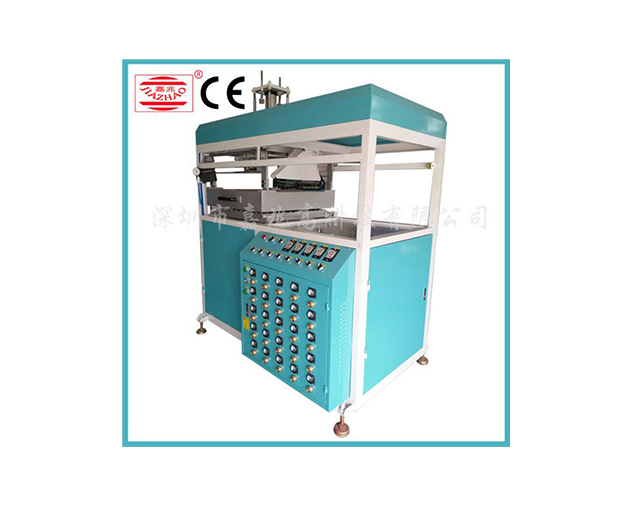

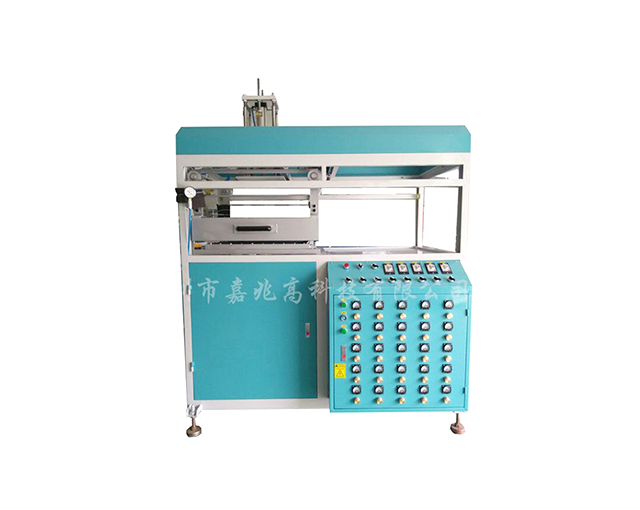

Semi-automatic blister molding machine

Strong adaptability of product specifications with the blister molding method can be manufactured extra large, extra small, extra thick, extra thin products, sheet material can be as thin as 1 ~ 2MM, or even thinner, the product area can be as large as 10 ㎡, as small as a few square millimeters, wall thickness can be as large as 20mm, as small as 0.1mm.

Product usage

This machine can vacuum mold PVC, PET, PP, PC, PS, ABS, BOPS, APET, CPET and other films into different shapes.

The machine can vacuum mold PVC, PET, PP, PC, PS, ABS, BOPS, APET, CPET and other films into different shapes of plastic cover. It can be used to produce egg containers, salad boxes, snack boxes, fruit boxes, cookie boxes, toothbrushes, batteries, gifts, hardware, stationery, decorations and other products.

Products, hardware, stationery, decorations, medical, electronic and other plastic containers.

Product features

Strong adaptability of product specifications with the blister molding method can be manufactured extra large, extra small, extra thick, extra thin products, sheet material can be as thin as 1 ~ 2MM, or even thinner, the product area can be as large as 10 ㎡, as small as a few square millimeters, wall thickness can be as large as 20mm, as small as 0.1mm.

Products with a wide range of applications daily necessities blister packaging, small hardware blister packaging, automotive blister packaging, electronic products blister packaging, food blister packaging, cosmetic blister packaging, computer peripherals blister packaging, toys blister packaging, sporting goods blister packaging, blister packaging of stationery and so on.

Higher production efficiency. saving raw and auxiliary materials, light weight, easy to transport, good sealing performance, in line with the requirements of environmental protection and green packaging; can pack any shaped products, boxing without the need for additional cushioning materials; packaged products are transparent and visible, beautiful appearance, easy to sell, and is suitable for mechanized, automated packaging, easy to modernize the management, save manpower, improve efficiency.

Product parameters

Voltage380V 3P 50/60HZ

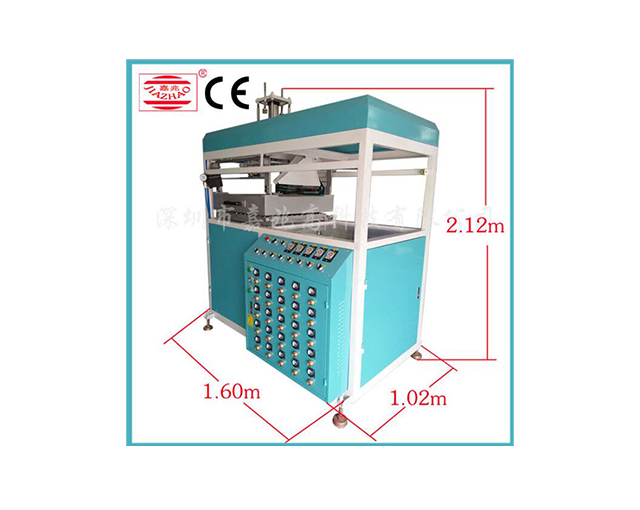

Dimension(L×W×H) 190*160*212cm
Weight900kg
Production speed200 to 300 times
Electric hot stove Executive electricity10KW-11KW
Total electricity consumption12-15KW
Suitable materialsPVC, PET, PP, PS etc
Pump motor power consumption2.2KW
Air compressor (not included)7.5KW / 10HP
Blower motor power0.5KW
Forming Length610mm
Forming width560mm
Forming height0-160mm

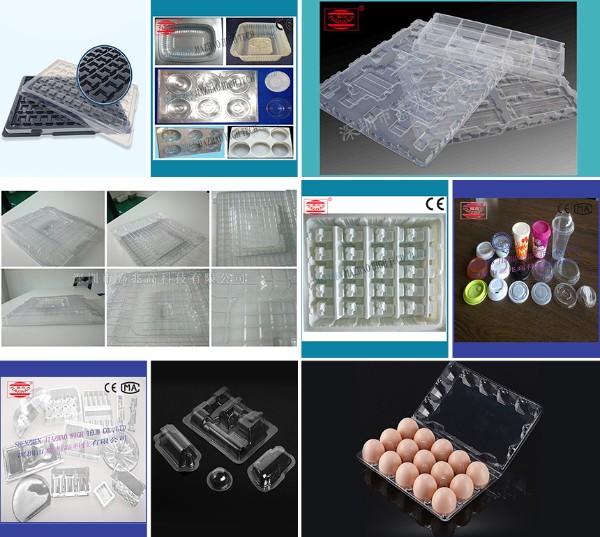

Sample effect display

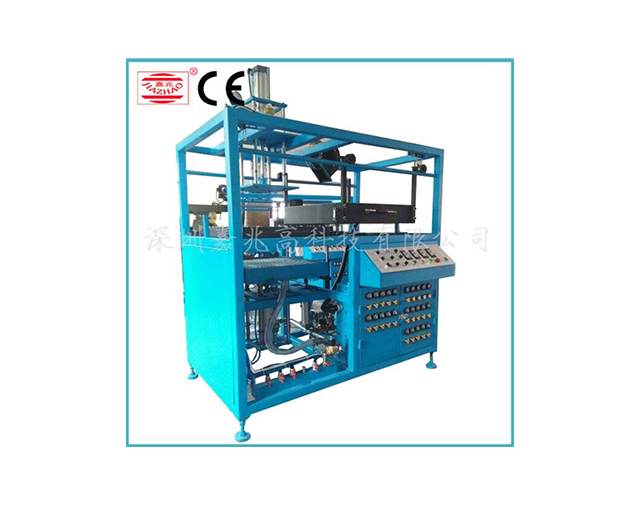

Semi-automatic blister molding machine
